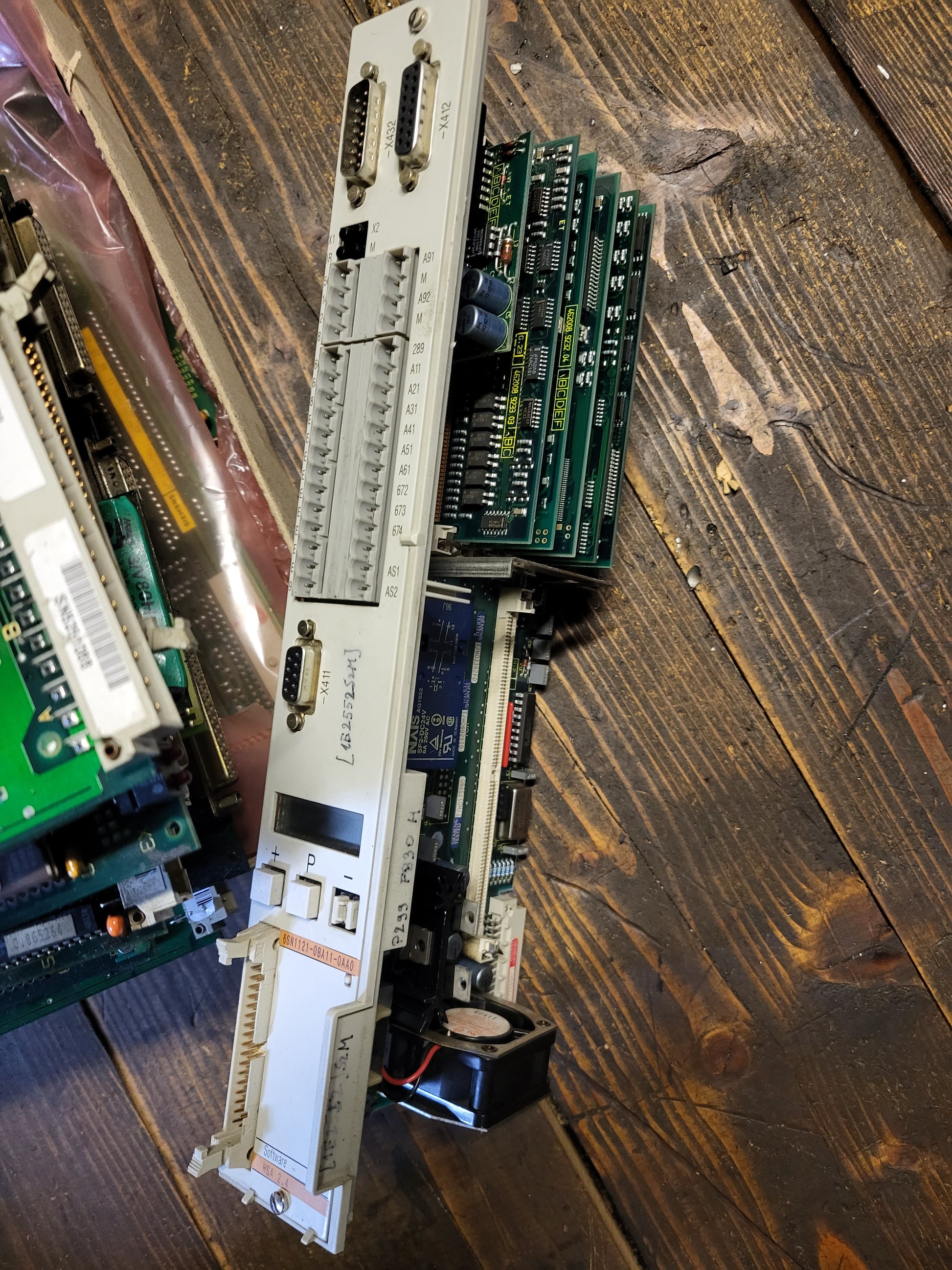

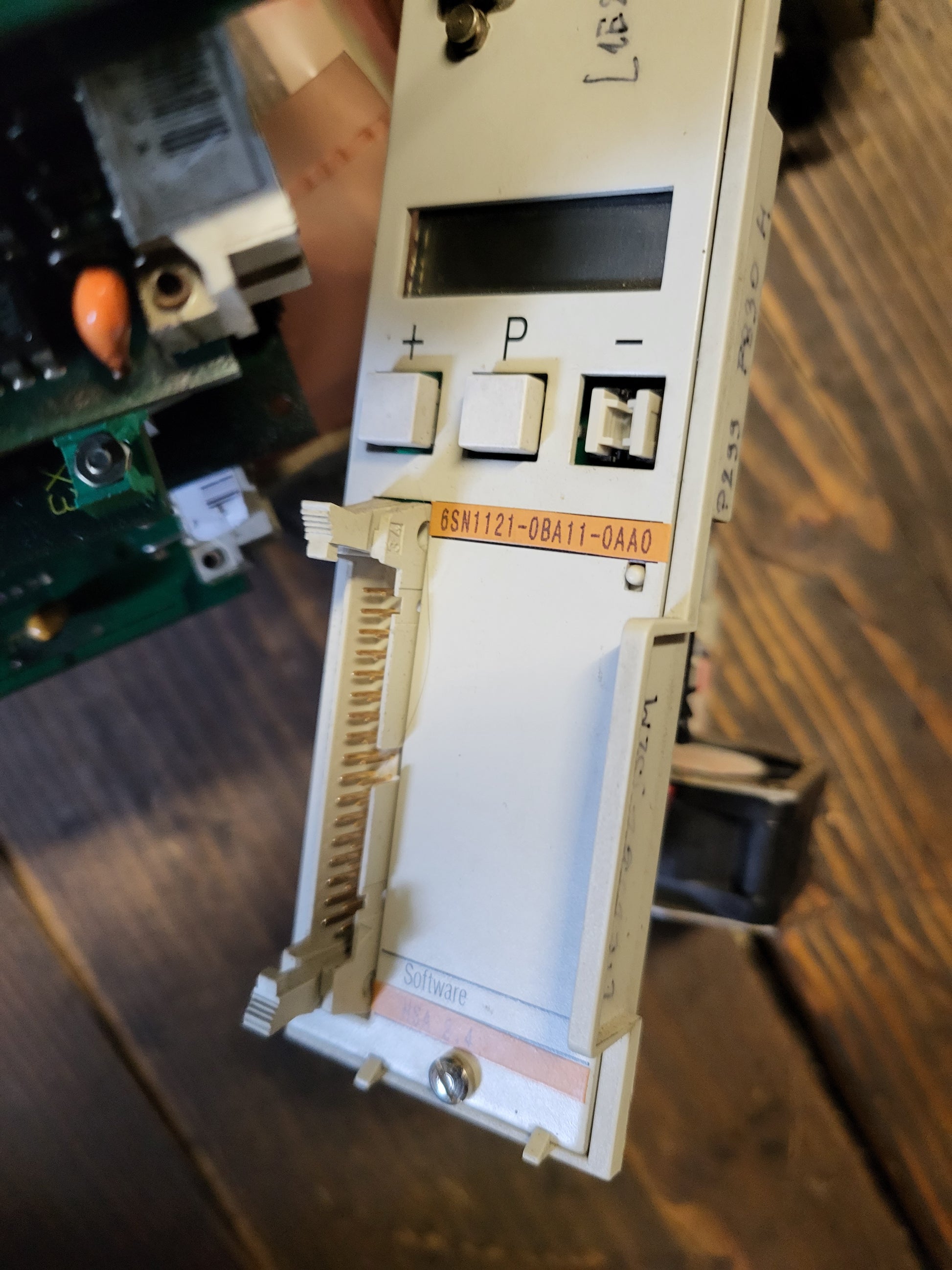

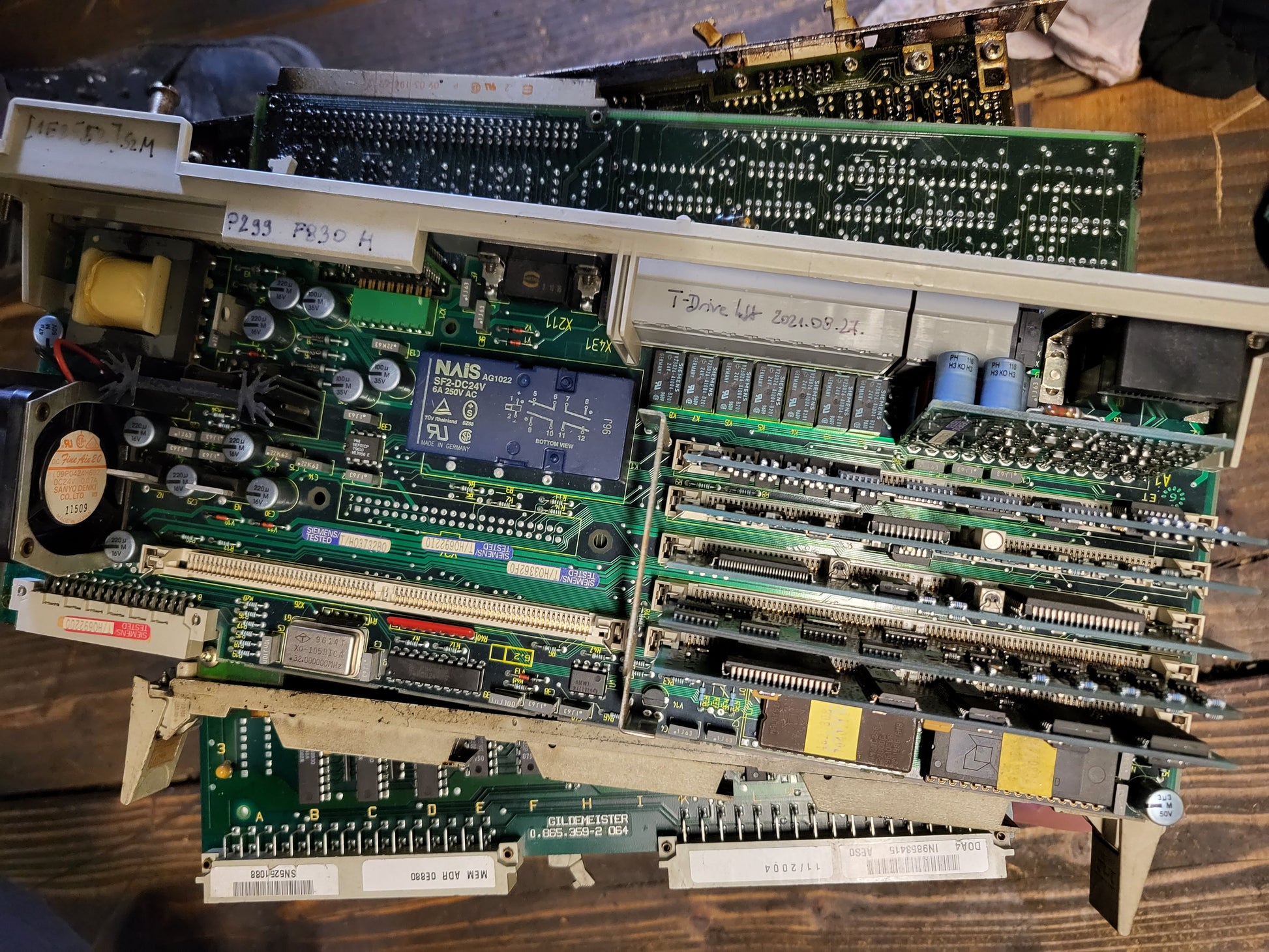

6SN1121-0BA11-0AA0, SIMODRIVE 611-A control card for spindle drive, 1PH basic version motor

6SN1121-0BA11-0AA0, SIMODRIVE 611-A control card for spindle drive, 1PH basic version motor

Price, warranty, delivery time, options:
a.) 1490 EUR, sale price (until July 31, 2024!) : I give a 1-year warranty for the refurbished card, it will arrive at you in 1-2 days with standard delivery, from the warehouse.

b.) We can repair the card if you have 2 weeks for the standard repair time. This service also has a 1-year warranty.)

c.) Test price: 350 EUR ( 137,617 HUF) The test prices are invoiced only if the repair does not need to be performed or you do not order it. Otherwise, they will be included in the repair price.

Product data:
6SN1121-0BA11-0AA0, SIMODRIVE 611-A control card for spindle drive, 1PH basic version motor, with analog interface.
Software version: HSA 2.4

Spindle control with analog interface
6SN1121-0BA1!-0AA!
For 1PH induction motors (optical rotary encoders or inductive gear encoders), the following control elements are available:
(order number: 6SN1121-0BA11-0AA1).
The X432 interface can also be used as a spindle encoder input for positioning,
or as a WSG interface (rotational position output to the NC).

So far, the functional scope of the above-mentioned card has been delivered with the following
in three card versions, order number: 6SN1121-0BA1!-0AA0
a) Basic version
b) Optionally with spindle encoder evaluation (positioning)1)
c) Optionally with WSG interface (rotor position output)1)

The above technical data comes from:
https://nicontrols.com/media/pdfs/Siemens-6SN1121-0BA1-datasheet.pdf
