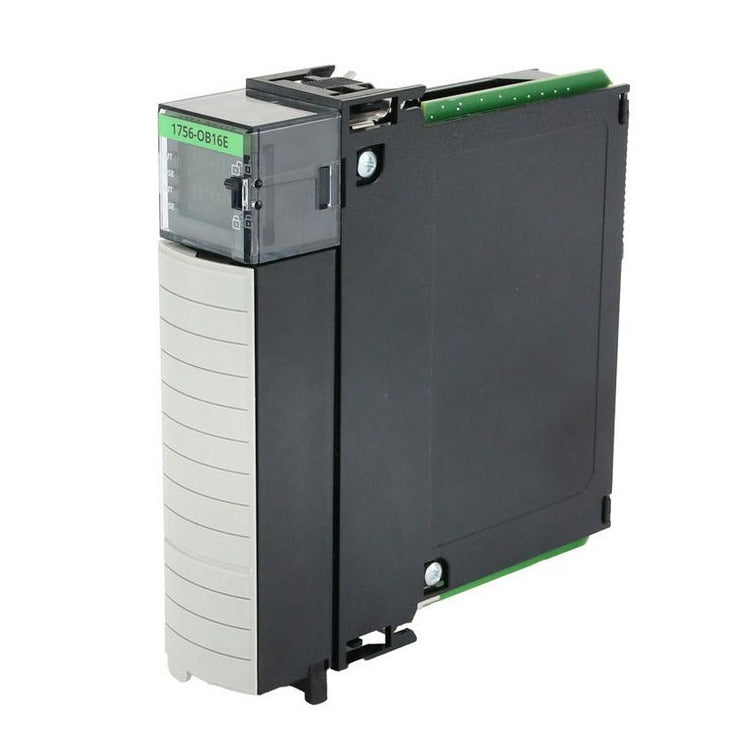

1756-OB16E, 16-output digital DC output module, Allen-Bradley

1756-OB16E, 16-output digital DC output module, Allen-Bradley

Product details:
Manufacturer: Allen Bradley
Category: PLCs
Product range: ControlLogix
Power consumption (max): 4.1 W @ 60 °C (140 °F)
Module type: Digital DC output module
Number of Outputs: Sixteen (16)
Output voltage range: 10–31.2 VDC
Rated output voltage: 24 VDC
Output delay time, OFF-ON: 70 µs nominal/1 ms max.
Output delay time, ON-OFF: 360 µs nominal/1 ms max.
Backplane current at 24 V: 2 milliamperes
Backplane current at 5.1 V: 250 milliamperes
Heat dissipation: 13.98 BTU/hr @ 60 °C (140 °F)
Outputs: 16 points with electronic fuse
Voltage: 12-24V DC
Operating voltage range : 10 – 30 V DC
Maximum output current - point : 1 A at 60 ° C
Maximum output current - module : 8 A at 60 ° C
Backplane current at 5 V : 250 mA
Insulation voltage 50 V continuous

Price, delivery time, condition, warranty, options:
a.) selling price for a refurbished module: 330 EUR
2 year warranty, delivery time: 5 days to Hungary, 5 days to Western and Central Europe, UA 8 days, UAE 14 days, USA 14 days.

b.) repair price: 470 EUR (179183 HUF), 2 year warranty.
Standard repair time: 12 days delivery time to Hungary, 12 days delivery time to Europe, UA 13 days, UAE 15 days, USA 16 days.
For urgent repairs, we can complete the repair within ~48 hours.
