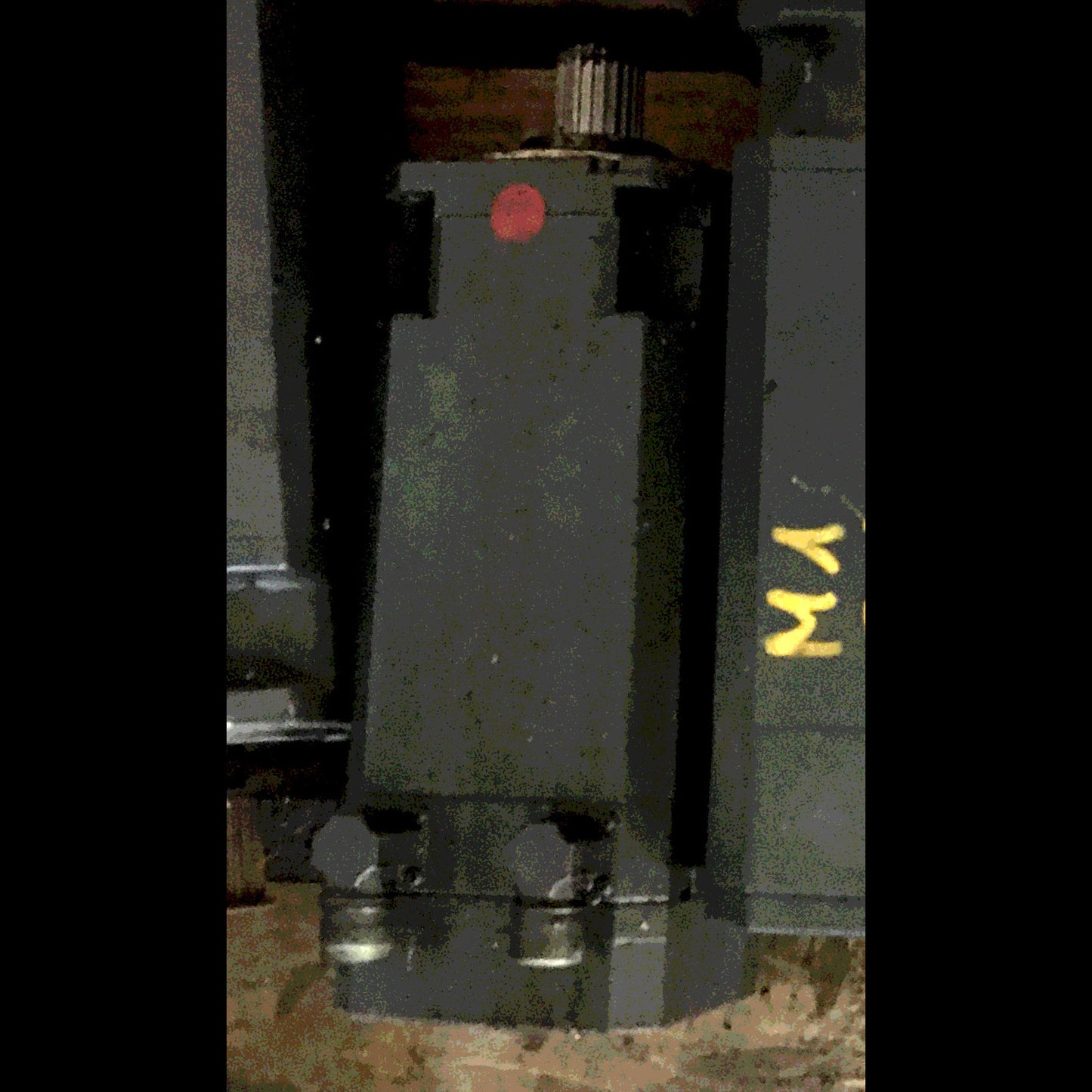

1FT6062-1AF71-3AH1, SIMOTICS S synchronous servo motor, 4.6Nm, 270V

1FT6062-1AF71-3AH1, SIMOTICS S synchronous servo motor, 4.6Nm, 270V

Product details:
SIMOTICS S synchronous servomotor 1FT6 6.0Nm, 100K, 3000rpm with natural cooling, IP65 IM B5 (IM V1, IM V3) incremental encoder sin/cos 1 VSS 2048 S/R (encoder I-2048) for power/signal connections: Output direction: axial. NDE with holding brake

Price, delivery time, condition, warranty, options:
a.) selling price for refurbished module: 4290EUR (1 781 531HUF) 2 year warranty, delivery time: 8 days to Hungary, 8 days arrival (to Western and Central Europe), UA (11 days), UAE (12 days), USA (16 days).
If you need it immediately, the next day, the price is 5000EUR, we will deliver it immediately.

We have several pieces in stock.

b.) repair price: 2100EUR (1 191 569HUF), 1 year warranty.
Standard repair time: 3 weeks delivery time to Hungary, 3 weeks delivery time (to Europe), UA (4 weeks), UAE (4 weeks), USA (5 weeks).
Same for urgent repairs and delivery: 1-1.5 weeks.

c.) Test price: EUR (HUF) Test prices are only invoiced if the repair does not need to be performed or you do not order it. Otherwise, they are included in the repair price.

Product details in detail:
SIEMENS 3~ Permanent-Magnet-Motor
1FT6062-1AF71-3AH1
MADE IN GERMANY

Mn: 4.6Nm 3000/min Uieff: 270V Y
M: 5.5Nm 1500/min Uieff: 135V Y
Mo: 5-6Nm Ioeff: 3.4/4A 60/100K

n max: 3900/min
KTY 84

IMB5
IP65

Optical encoder: B01 2048 S/RZ

Brake: 24V-17W
