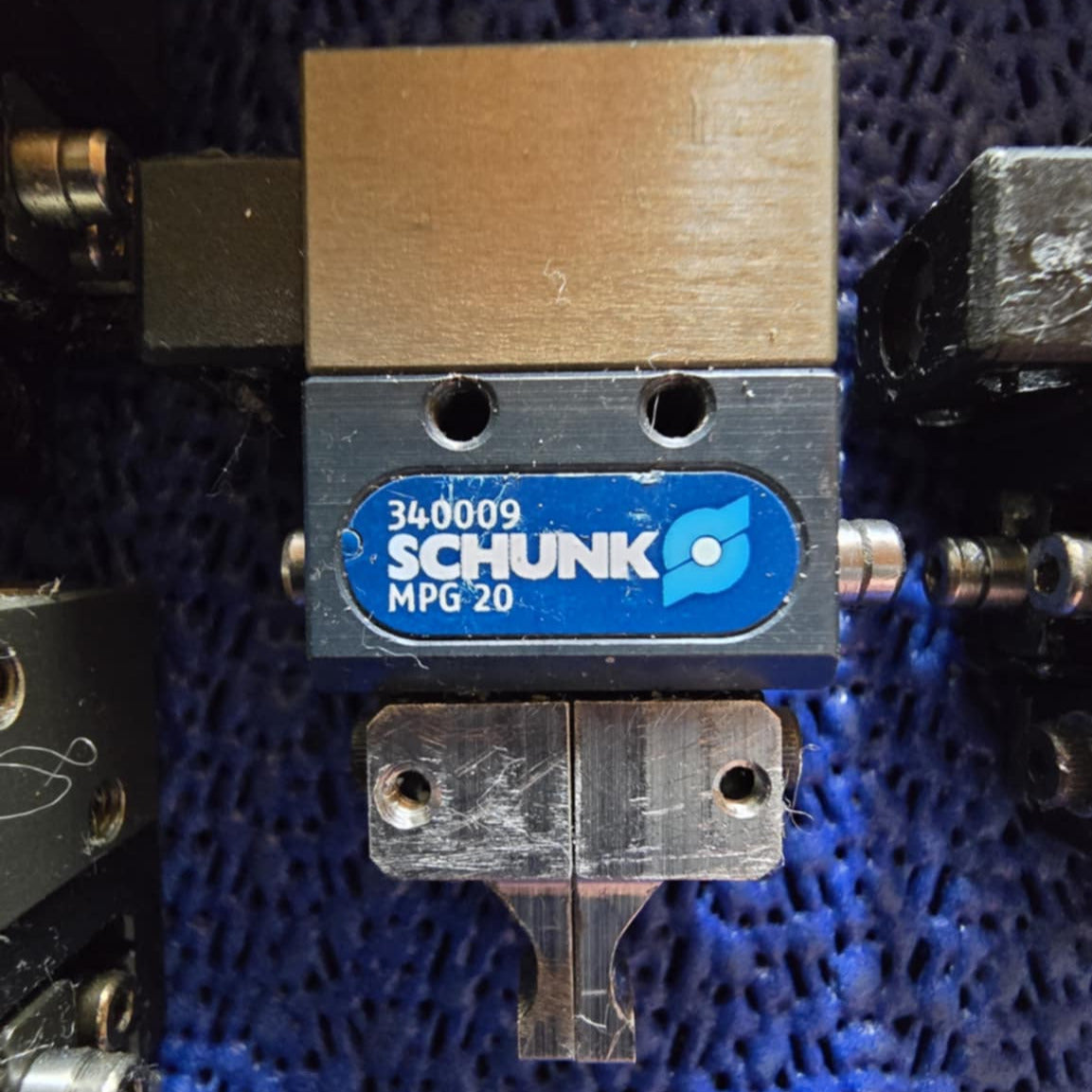

340009, MPG20, parallel gripper, pneumatic clamp, Schunk

340009, MPG20, parallel gripper, pneumatic clamp, Schunk

Product details:
SCHUNK Pneumatic parallel gripper, MPG series - MPG 20, KGA 2-FINGER;
Stroke per jaw: 2 [mm]; Closing force: 28 [N]; Opening force: 24 [N];
min. spring force : N/A [N]; Weight : 0.04 [kg]; recommended workpieces
weight: 0.14 [kg]; Fluid consumption double stroke: 0.39 [cm³]; min.
working pressure: 2 [bar]; max. working pressure: 8 [bar]; nominal
operating pressure: 6 [bar]; Closing time: 0.015 [s]; Opening time: 0.015 [s];
Closing/opening time with spring: N/A [s]; max. allowed finger length: 20 [mm]; max. allowed weight per finger: 0.01 [kg]; Protection class IP: 30; min. ambient temperature: 5 [°C]; max. ambient temperature: 90 [°C]; repeatability: 0.02 [mm]; ISO 14644-1 : cleanliness class 5; Torque Mx max. : 0.3 [Nm]; Torque My
max. : 0.3 [Nm]; Torque Mz max. : 0.3 [Nm]; max. axial force Fz max: 50 [N];
Used.

Price, delivery time, condition, warranty, options:
a.) Selling price for used module: 145EUR (58894HUF)
3 months warranty.
Delivery time: 1-2 days to Hungary.
2-3 day delivery to Western and Central Europe.
UA 7 days, UAE 10 days, USA 14 days.

1 piece in stock.
