SND009-502, Baldor, Servonode 51, single-axis integrated servo drive
SND009-502, Baldor, Servonode 51, single-axis integrated servo drive
Couldn't load pickup availability
SND009-502, Baldor, Servonode 51, single-axis integrated servo drive
Price, delivery time, condition, warranty, options:
a.) selling price for refurbished module: 1750EUR ( 699 609 HUF) 2 year warranty, delivery time: 1-2 weeks to Hungary, 2 weeks arrival (to Western and Central Europe), UA (2 weeks), UAE (3 weeks), USA (3 weeks)
In stock.
b.) selling price for a used, tested module: 1190EUR ( 475 745 HUF) 2 months warranty, delivery time: 1-3 days to Hungary, 4 days arrival (to Western and Central Europe), UA (1 week), UAE (2 weeks), USA (2 weeks)
c.) repair price: EUR (HUF), 2 year warranty.
Standard repair time: 12 days delivery time to Hungary, 12 days delivery time (to Europe), UA (12 days), UAE (15 days), USA (16 days).
For urgent repairs, we can complete the repair within ~48 hours.

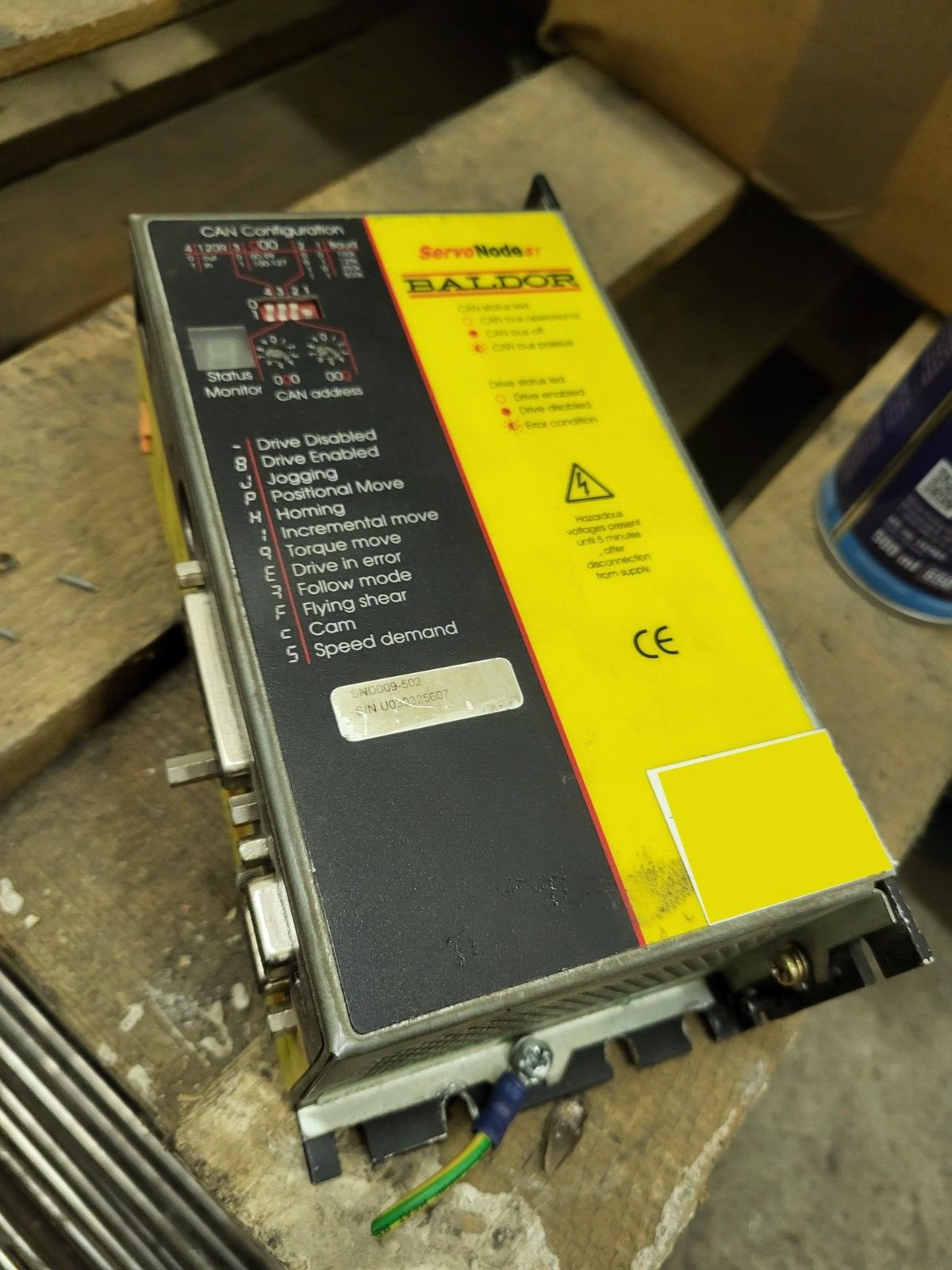

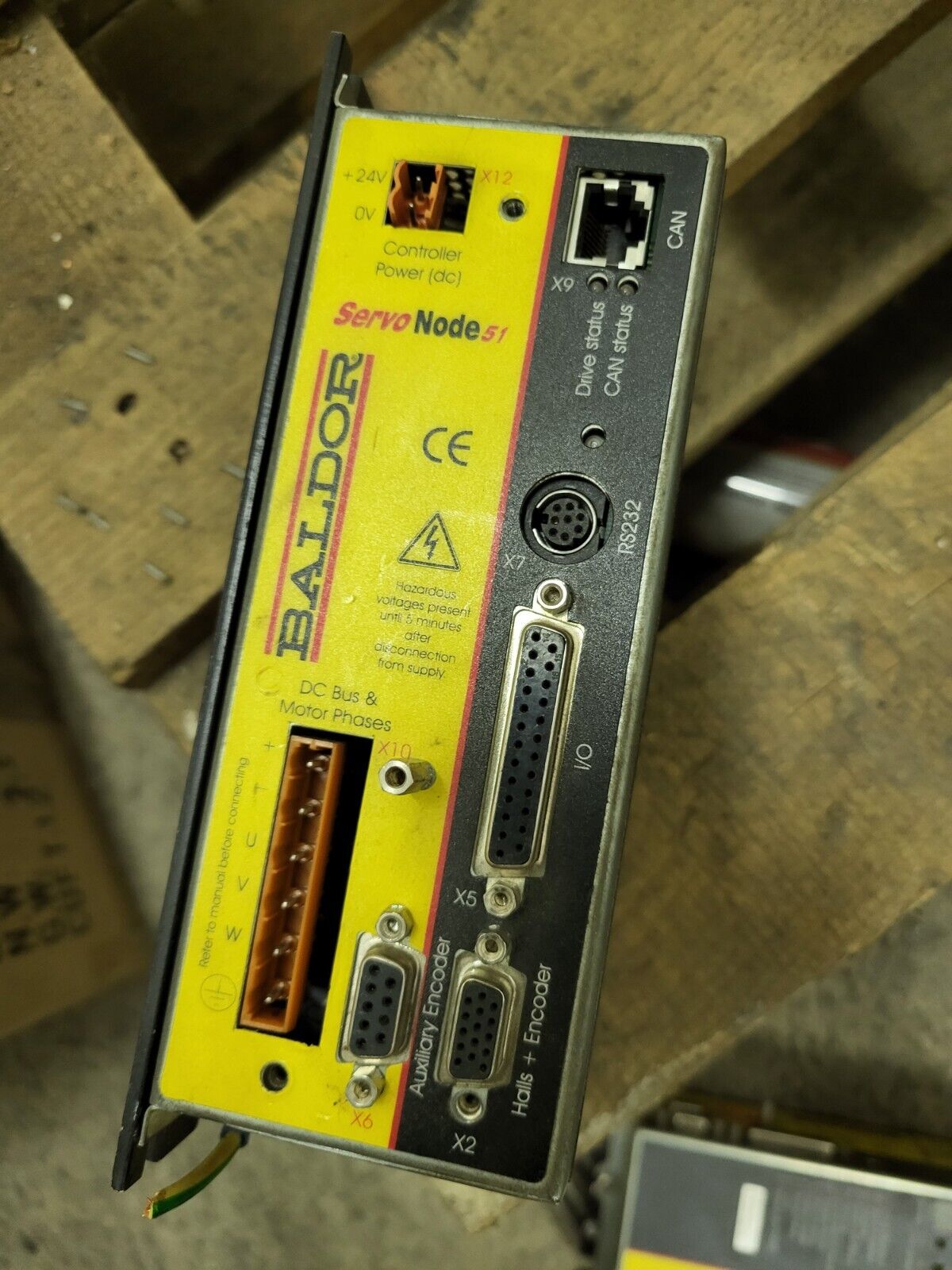

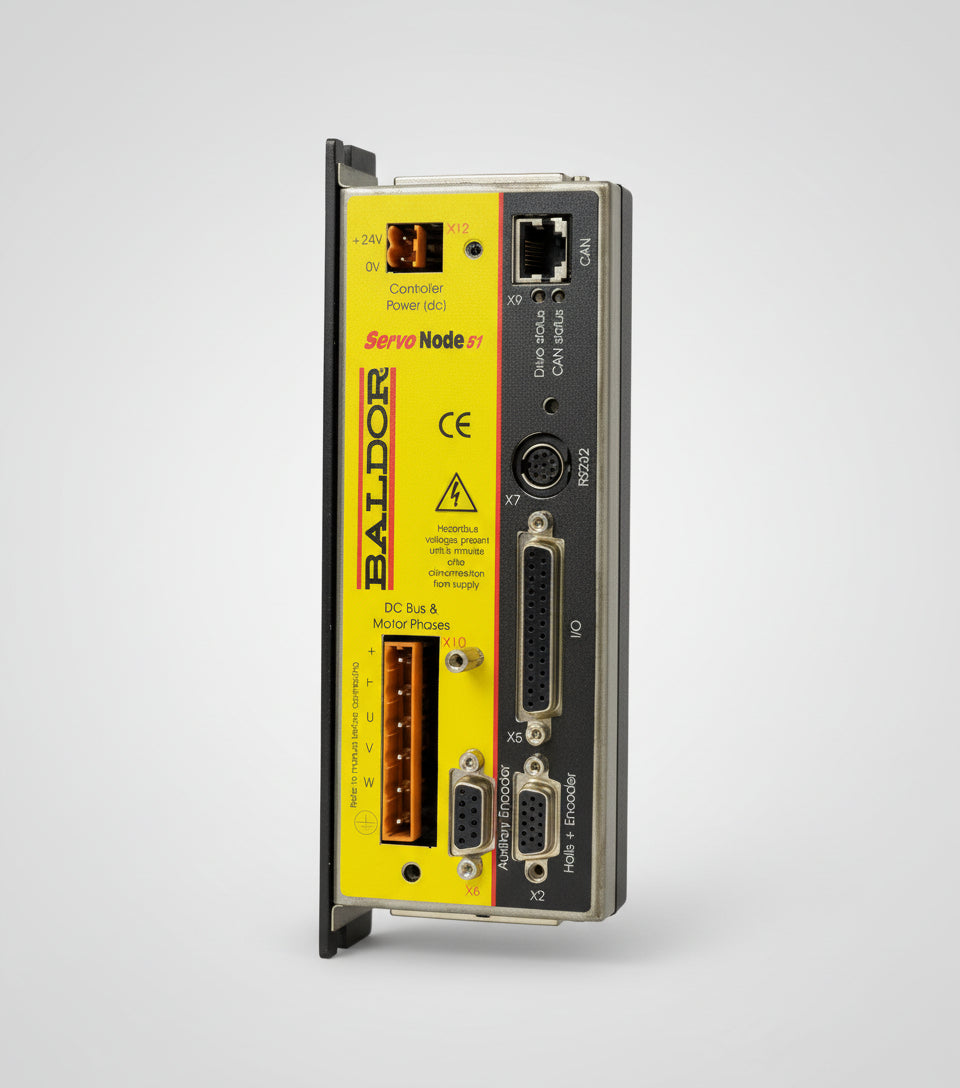

The ServoNode 51 is a single-axis integrated servo drive that can be programmed in Mint™ for position, speed or torque control and has a built-in CAN bus.
• 1 coordinated axis of motion.
• 5A continuous, 10A peak current, 140Vdc bus.
• Separate controller and motor DC power connections.
• Programmable in Mint™.
• Single CAN bus interface for distributing I/O and operator interfaces, running CANopen
protocol for peer-to-peer communication with other Mint controllers.
• RS232 serial communication.
• Point-to-point movements, software cams and gearing.
• 6 optically isolated configurable digital inputs.
• 3 optically isolated digital outputs.
• 1 set of relay outputs.
• 1 general purpose analog input.
• 2 general purpose analog outputs.
• Single high-speed position latch input
• Additional encoder quick position latch
• Additional encoder (handwheel) input for tracking; e.g. software gearbox or cam
• 64 Kbyte Flash program and 8 Kbyte Flash configuration buffers
• Non-volatile backup for RAM Array Data Store
• Switching encoder feedback
• Protection includes overcurrent, overtemperature and low voltage
Baldor assembly manual:
Sales results:

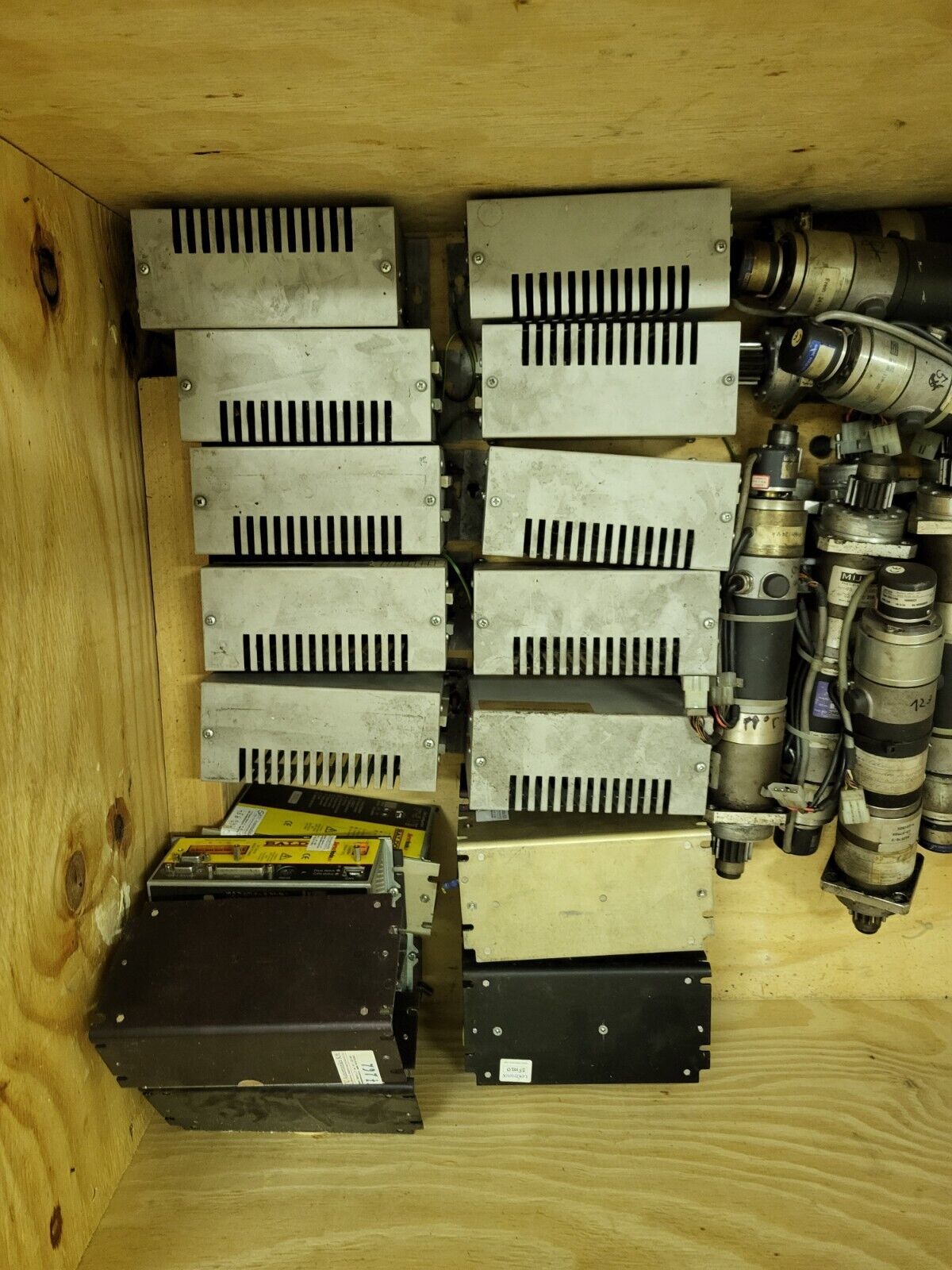

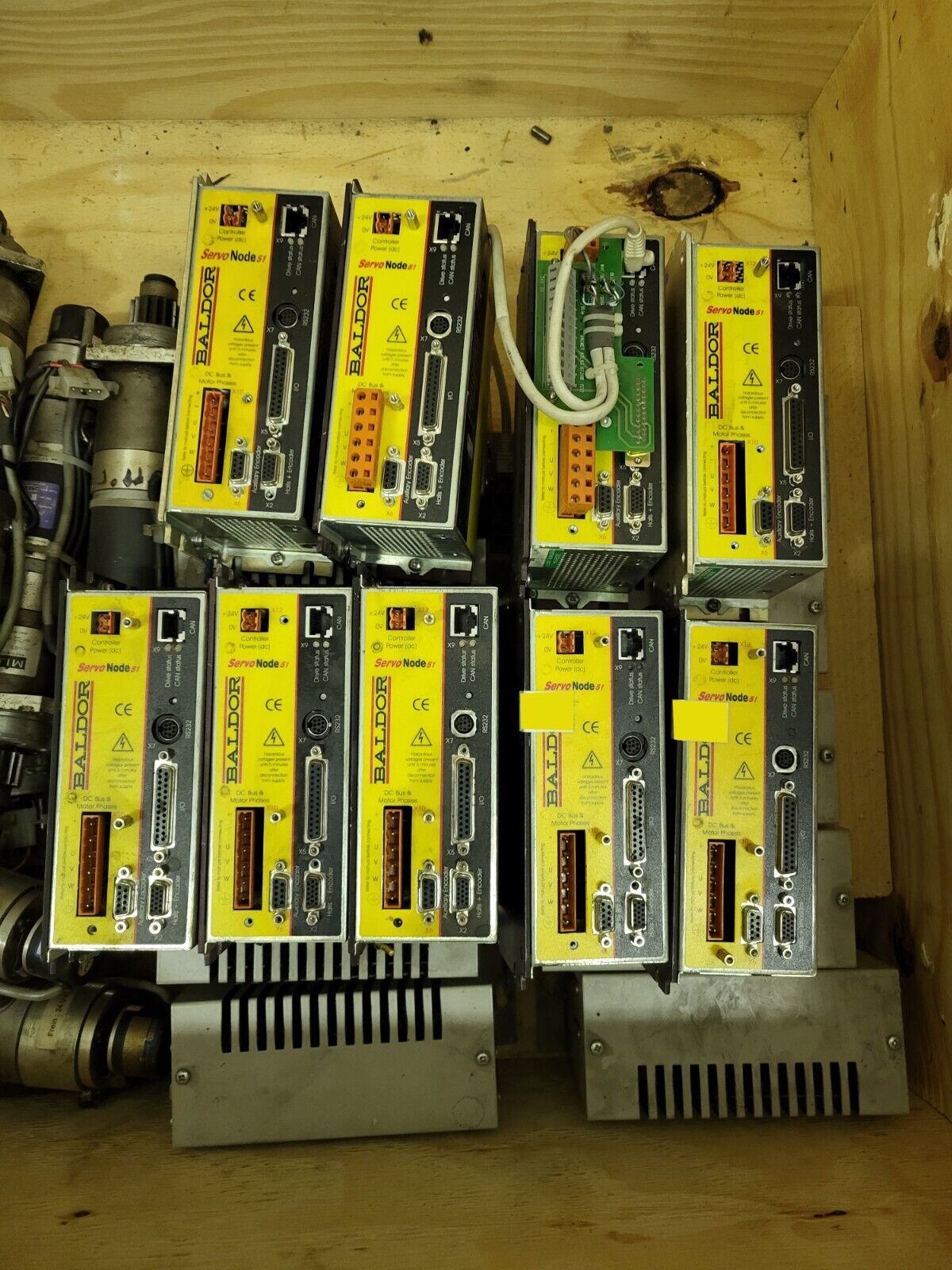

We have sold several such modules so far, several of them went to the Middle East. The devices were in working but untested condition in stock. After the order, the modules were refurbished, which was done by a partner company (over the weekend!). The time-sensitive components were replaced, pasted and cleaned. We delivered them. 5 or 8 pieces for sure.
