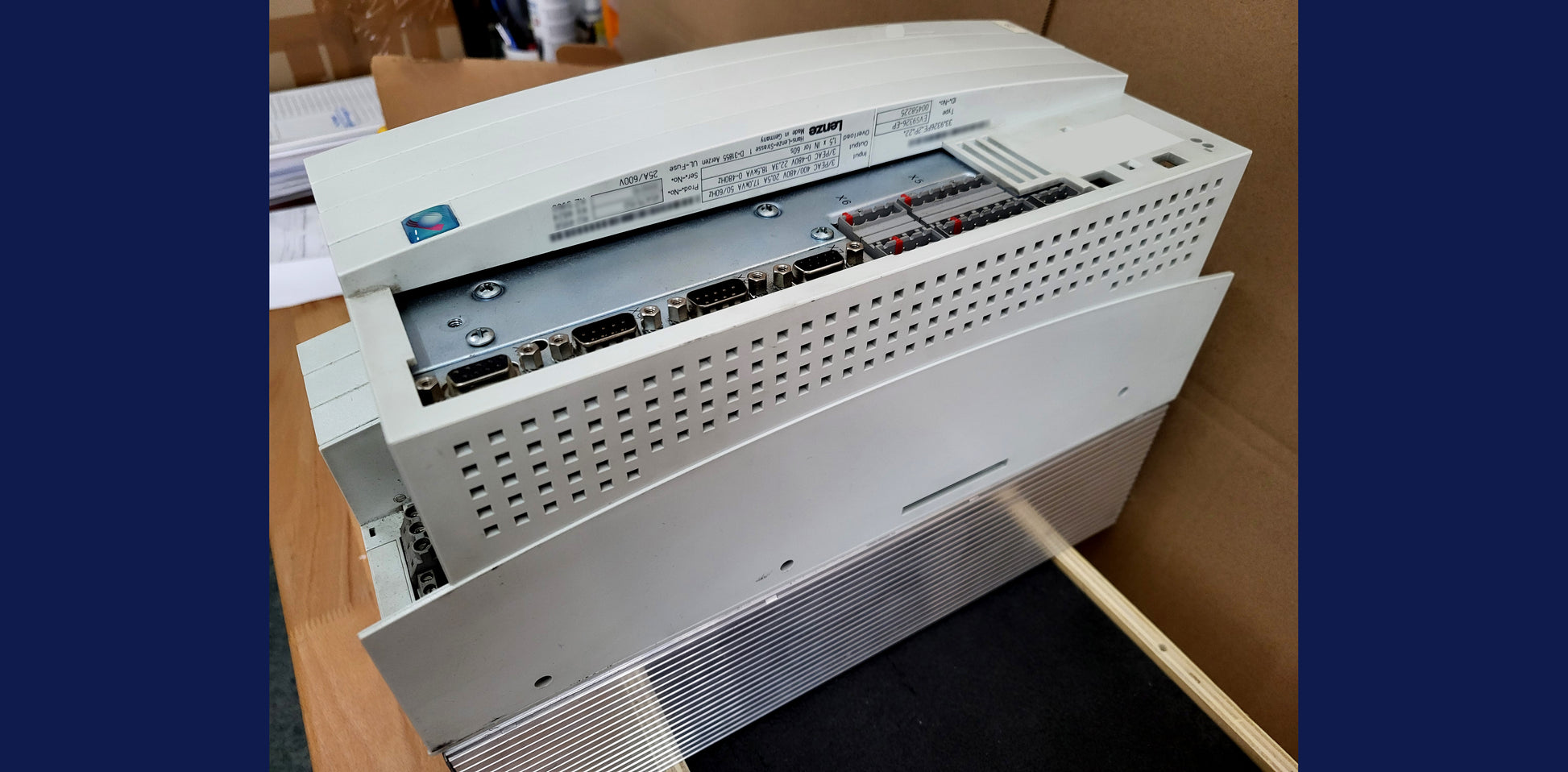

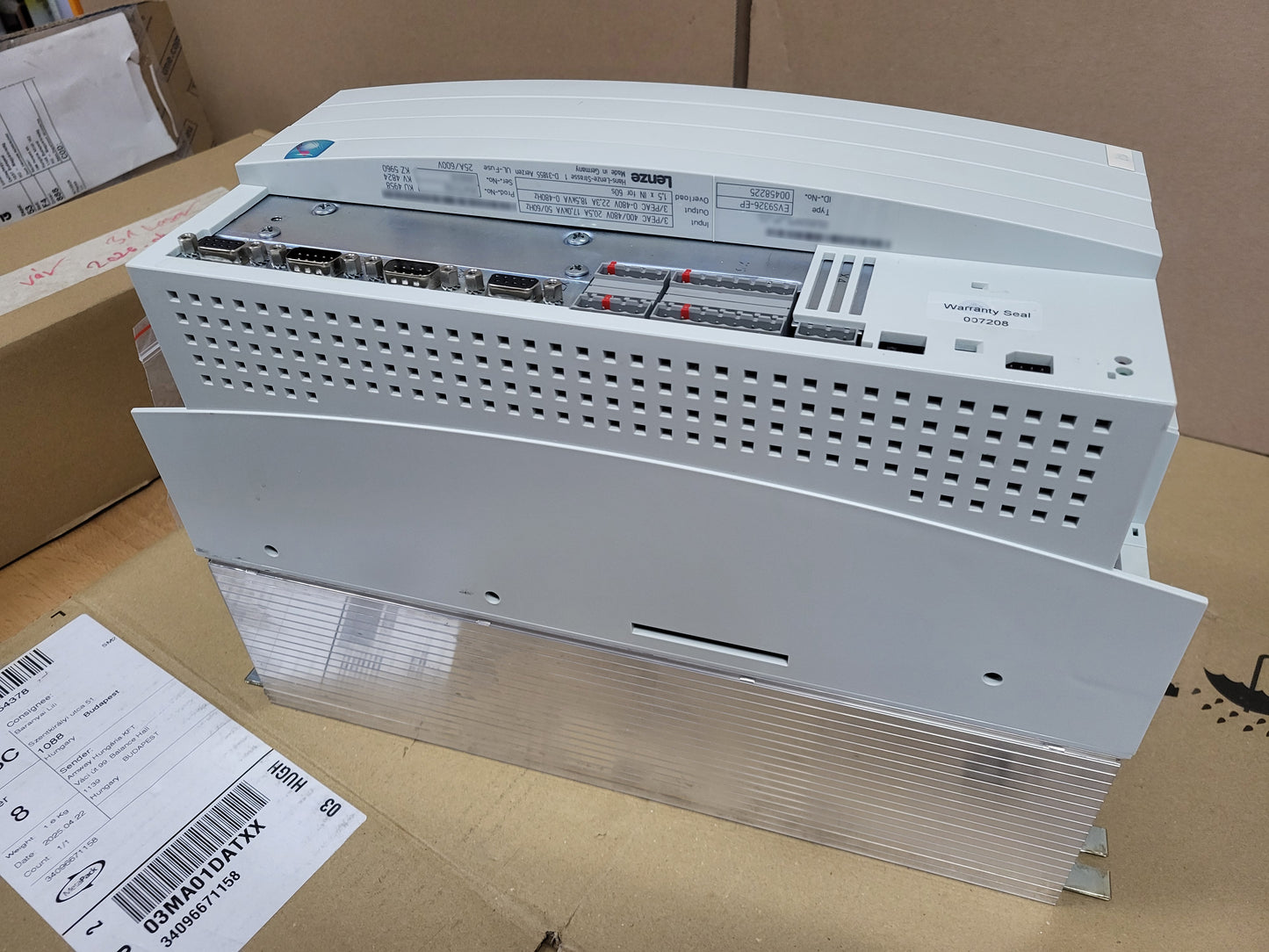

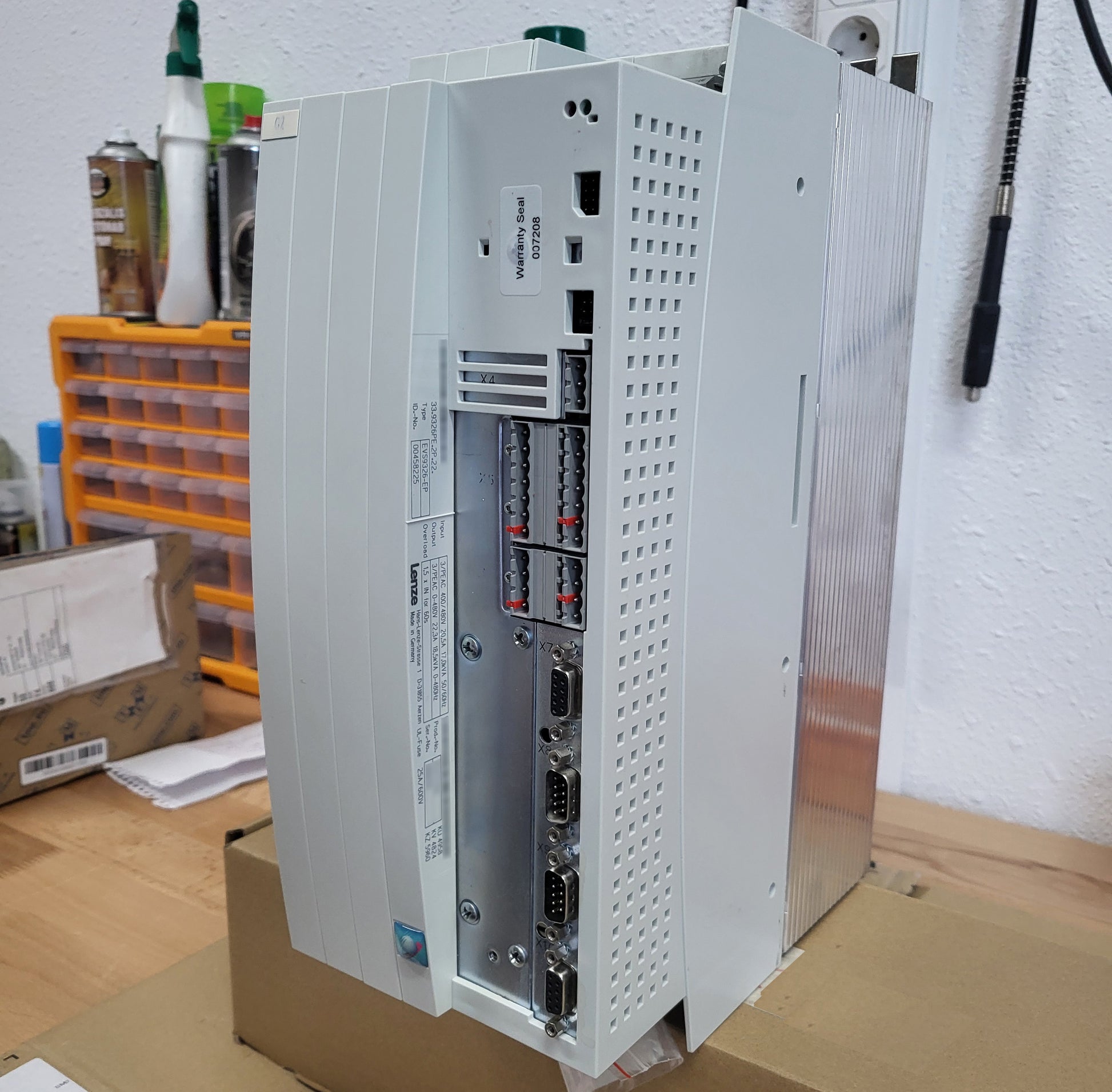

EVS9326-EP, servo positioner, 11kW, 22.3A, Lenze

EVS9326-EP, servo position controller, 11kW, 22.3A, Lenze

Product data:
9300 series servo position controller, servo controller, IP20 protection, rated power: 11kW, 6.7kg

Input:
3/PEAC 400/480V, 20.5A, 17.0kVA, 50/60Hz

Output:
3/PEAC 0-480V, 22.3A, 18.5kVA, 0-480Hz

Important!
On the nameplate, in the Lenze part number or serial number above the type number (EVS..), the last 4 characters display the firmware number of your controller module: e.g. ..2P.22, this will be an FW2 or firmware 2 module. This information should always be available when purchasing or replacing your faulty module, it is important. Provide it to the company that supplies you.

Price, delivery time, condition, warranty, options:
a.) sales price for refurbished module: 2953EUR, 2 years warranty, delivery time: 7-9 days for Hungary, 9 days arrival (Western and Central Europe), UA (2 weeks), UAE (2 weeks), USA (2 weeks)
18 pcs available.
For machine downtime, we deliver the next day!

b.) urgent, machine downtime sales price, for refurbished module, with next day delivery: 3490EUR, 2 years warranty, delivery time: 1-2 days for Hungary, 1-2 days arrival (Western and Central Europe), UA (1-2 days), UAE (3 days), USA (3-4 days)

c.) repair price: 1890EUR (711 770HUF), 2 years warranty.
Standard repair time: 12 days delivery time for Hungary, 12 days delivery time (Europe), UA (12 days), UAE (15 days), USA (16 days).
Urgent repair takes ~48 hours.

d.) exchange price for faulty module:

Repair and sales results:
We handled a burnt-out module in urgent repair, for which we also had to perform a parameter backup.
We initially thought it would be password protected, but in the end we were able to perform the backup anyway.
The device went back into production.

Important:
It is recommended to measure the motor and cables before reinstalling the repaired module. This is important to prevent a situation where a short-circuited cable or motor would destroy the reinstalled drive again. (Iesales can also send out a specialist.)
