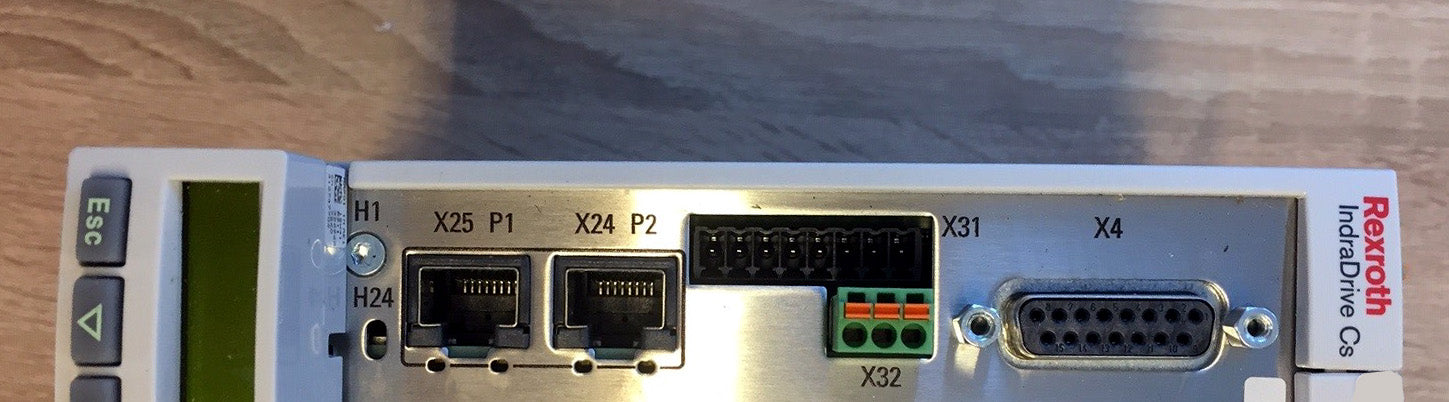

HCS01.1E-W0003-A-02-B-ET-EC-NN-NN-NN-FW, Rexroth Indradrive servo drive module, 1.4A, with Profinet communication + firmware module

HCS01.1E-W0003-A-02-B-ET-EC-NN-NN-NN-FW, Rexroth Indradrive servo drive module, 1.4A, with Profinet communication + firmware module

Product data:
This version knows Profinetes communication.
(The drive is equipped with firmware FWA-INDRV*-MPB-17VRS-D5-1-NNN-NN.)

You can select the firmware module under the specs sheet in this OEM manual.

Product sheet of the manufacturer:
https://store.boschrexroth.com/Automation/Antriebe/IndraDrive/HCS01-Einzelachs-Umrichter/COMPACT-CONVERTER_R911338759?cclcl=en_AT

Single axis converter
0.15kW
Continuous current: 1.4A
Peak current: 3.3A
IP20
Voltage output: 3 x AC 0 ... 230V
internal air cooling
Nominal mains frequency: 50-60Hz

HCS01.1E-W0003-A-02- B-ET - EC - NN -NN-NN-FW
From the article number, B-ET means the BASIC l Multiethernet design (this covers Profinet), the following EC means the Encoder IndraDyn/Hyperface, and then the first NN means that there is no Interface 2.

Price, delivery time, condition, warranty, options:
a.) selling price for a new module: 1428 EUR ( 575 426 HUF) 1 year warranty, delivery time: 3-4 weeks to the territory of Hungary, with 3-4 weeks of arrival (to Western and Central Europe), UA (3-4 weeks), UAE (5 weeks), USA (5 weeks).
The sales price of the new firmware module FWA-INDRV*-MPB-17VRS-D5-1-NNN-NN is 314.5 EUR / module.

4 such new modules are now available.

b.) repair price: EUR (HUF), 1 year warranty.
Standard repair time: 3 weeks delivery time to Hungary, 3 weeks delivery time (to Europe), UA (4 weeks), UAE (4 weeks), USA (5 weeks).
The same for urgent repair and delivery: 1-1.5 weeks.

c.) Test price: EUR (HUF) The test prices are invoiced only if the repair does not need to be performed or you do not order it. Otherwise, they will be included in the repair price.
