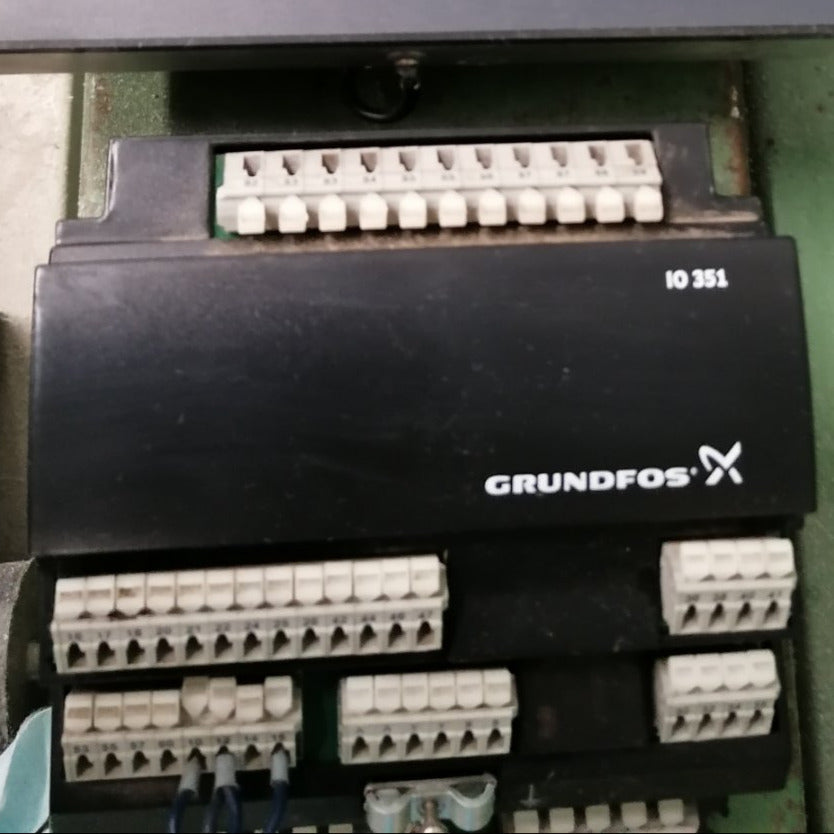

IO 351, I/O interface module, Grundfos

IO 351, I/O interface module, Grundfos

Product details:
Open circuit voltage: 24 VDC
Closed circuit current: 5 mA, DC
Frequency range: 0-4 HzAnalog inputs:
Input current and voltage: 0-20 mA, 4-20 mA, 0-10 V
Tolerance: ± 3.3 % of full scale
Repeatability: ± 1 % of full scale
Input resistance, current: < 250 Ω
Input resistance, voltage: > 50 kΩ ± 10%
Sensor power supply: 24 V, maximum 50 mA, short-circuit protected
Open circuit voltage: 12 VDC ± 15%
Closed circuit current: 2.6 mA, DC
Maximum contact load: 240 VAC, 2 A
Minimum contact load: 5 VDC, 10 mA
Analog outputs:
All outputs have short circuit protection.
Output signal: 0-10 V +2/-0 %
Repeatability: ± 5% of full scale
Maximum output current: 2 mA

Price, delivery time, condition, warranty, options:
a.) selling price for a used module: 400 EUR (158411 HUF) 1 year warranty, delivery time: 1-2 days to Hungary, 4 days arrival (to Western and Central Europe), UA (1 week), UAE (2 weeks), USA (2 weeks)

b.) repair price: EUR (HUF), 2 year warranty.
Standard repair time: 12 days delivery time to Hungary, 12 days delivery time (to Europe), UA (12 days), UAE (15 days), USA (16 days).

For urgent repairs, we can complete the repair within ~48 hours.
