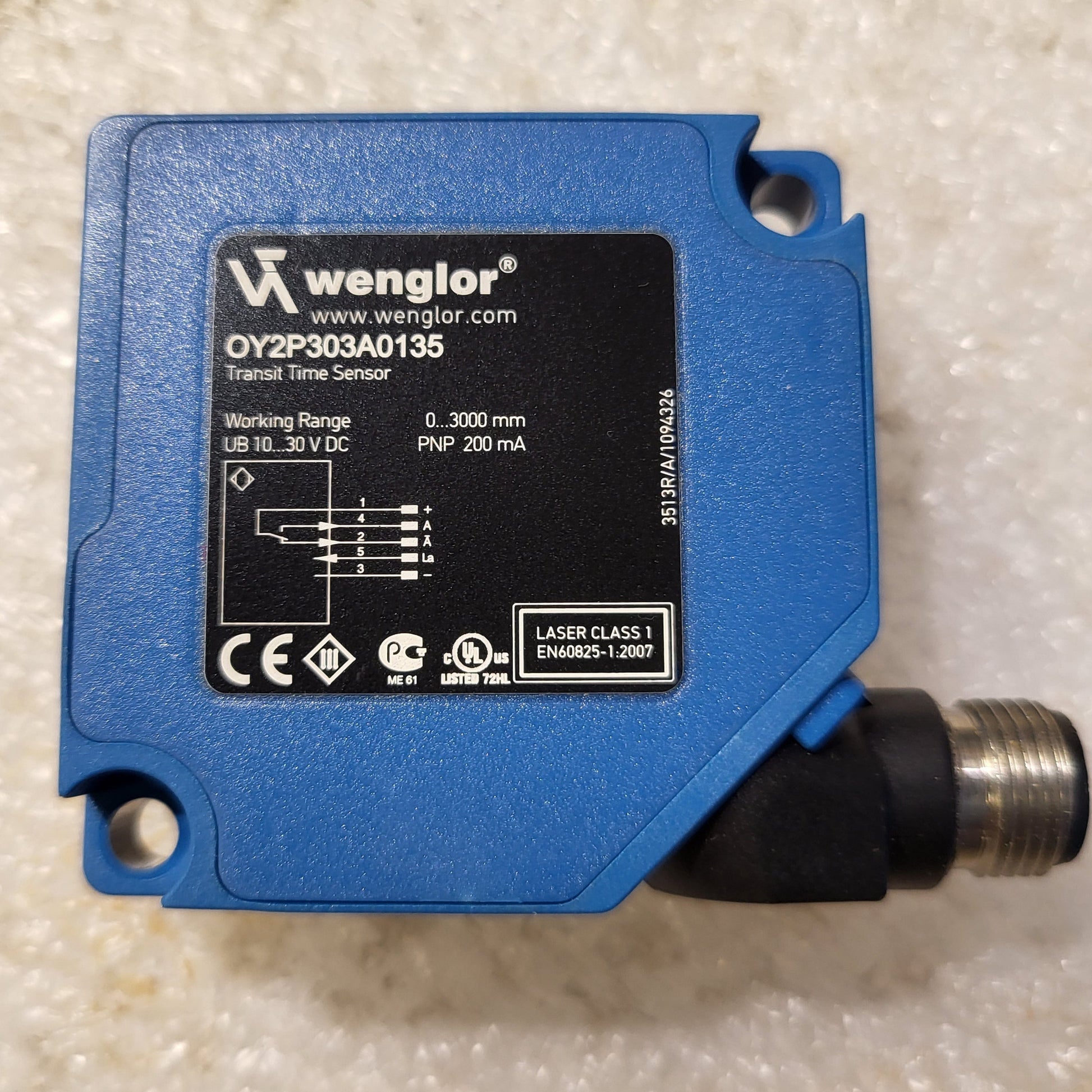

OY2P303A0135, laser distance sensor, Wenglor

OY2P303A0135, laser distance sensor, Wenglor

Product details:
Operating range:   0 ... 3000 mm
Setting range:   200 ... 3000 mm
Switching hysteresis: < 15mm
Light source:   Laser (red)
Wavelength:   660 sq m
Lifespan (T = +25 °C):   100,000 hours
Laser class (EN 60825-1):   1
Beam spread: < 2 mrad
Max. ambient light:  10,000 lux
Reflector required:   not
Power supply:   10 ... 30 V DC
Current consumption (Ub = 24 V): < 50 mA
Switching frequency:  1000Hz
Response time:  0.5ms
Temperature difference (-10 °C < Needle < 50°C): < 1%
Temperature deviation (Tu < -10 °C, Tue > 50°C): < 2.5%
Temperature range:   -40 ... 60 °C
Number of switching outputs:   2
Switch output voltage drop: < 2.5V
PNP switch output/switching current:   200mA
Short circuit protection:   Yes
Reverse polarity protection:   Yes
Overload protection:   Yes
Protection class:   II

THEr, swarranty, status, options:
a.) selling price for new module: 198EUR (78 020HUF) 1 year warranty, delivery time: 1 day to Hungary, 4 days arrival (Western and Central Europe), UA (1 week), UAE (2 weeks), USA (2 weeks)

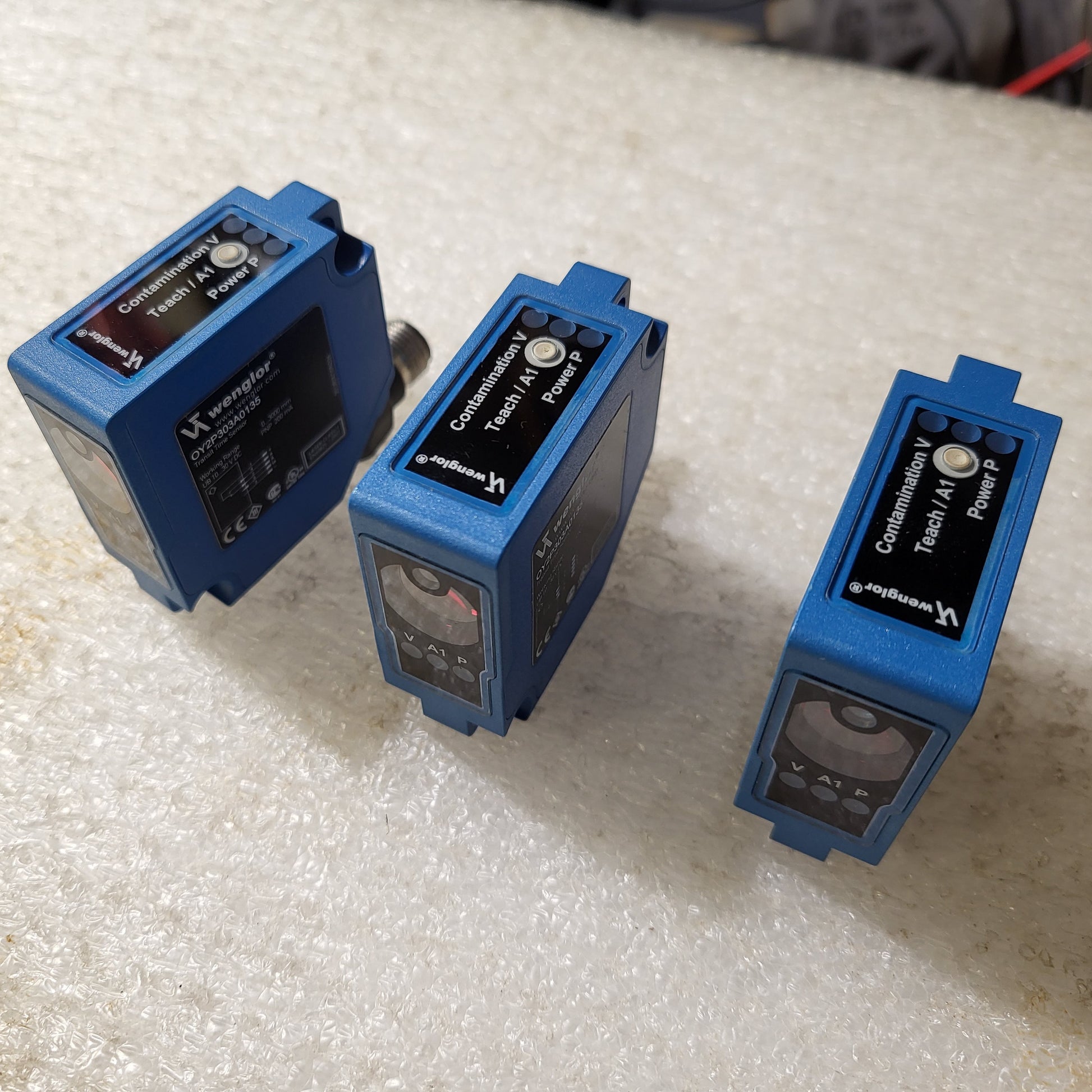

3 pieces in stock.
