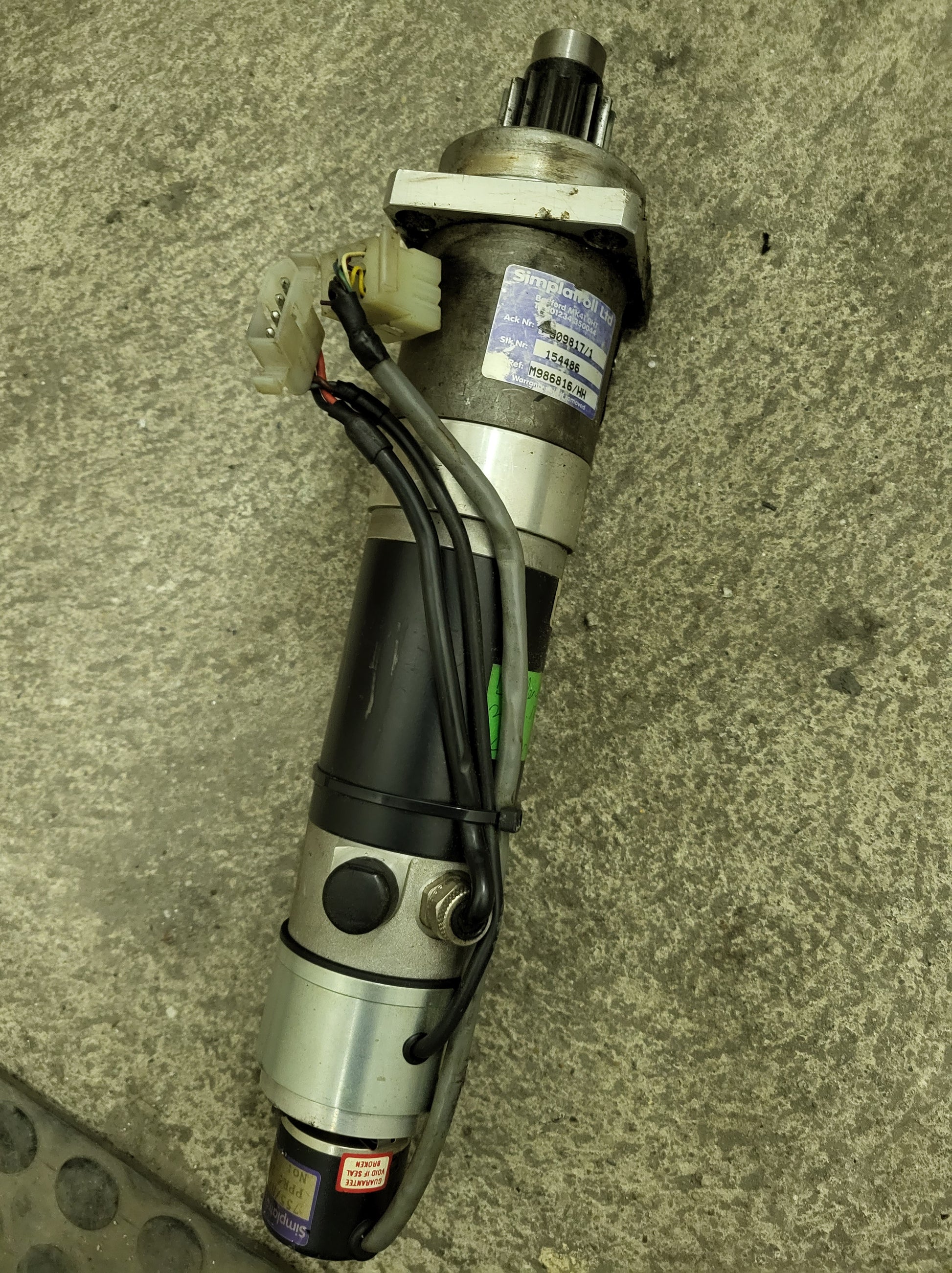

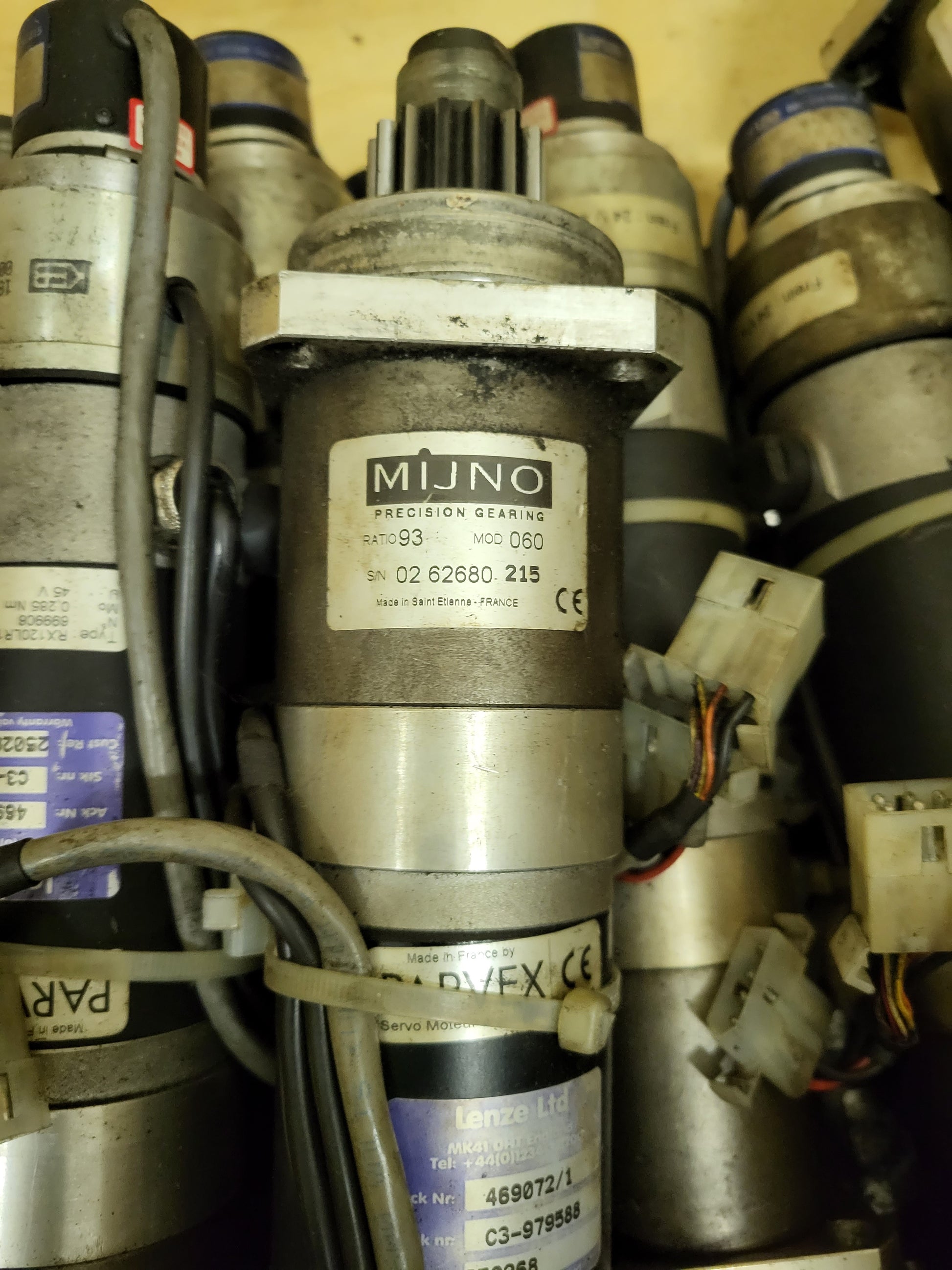

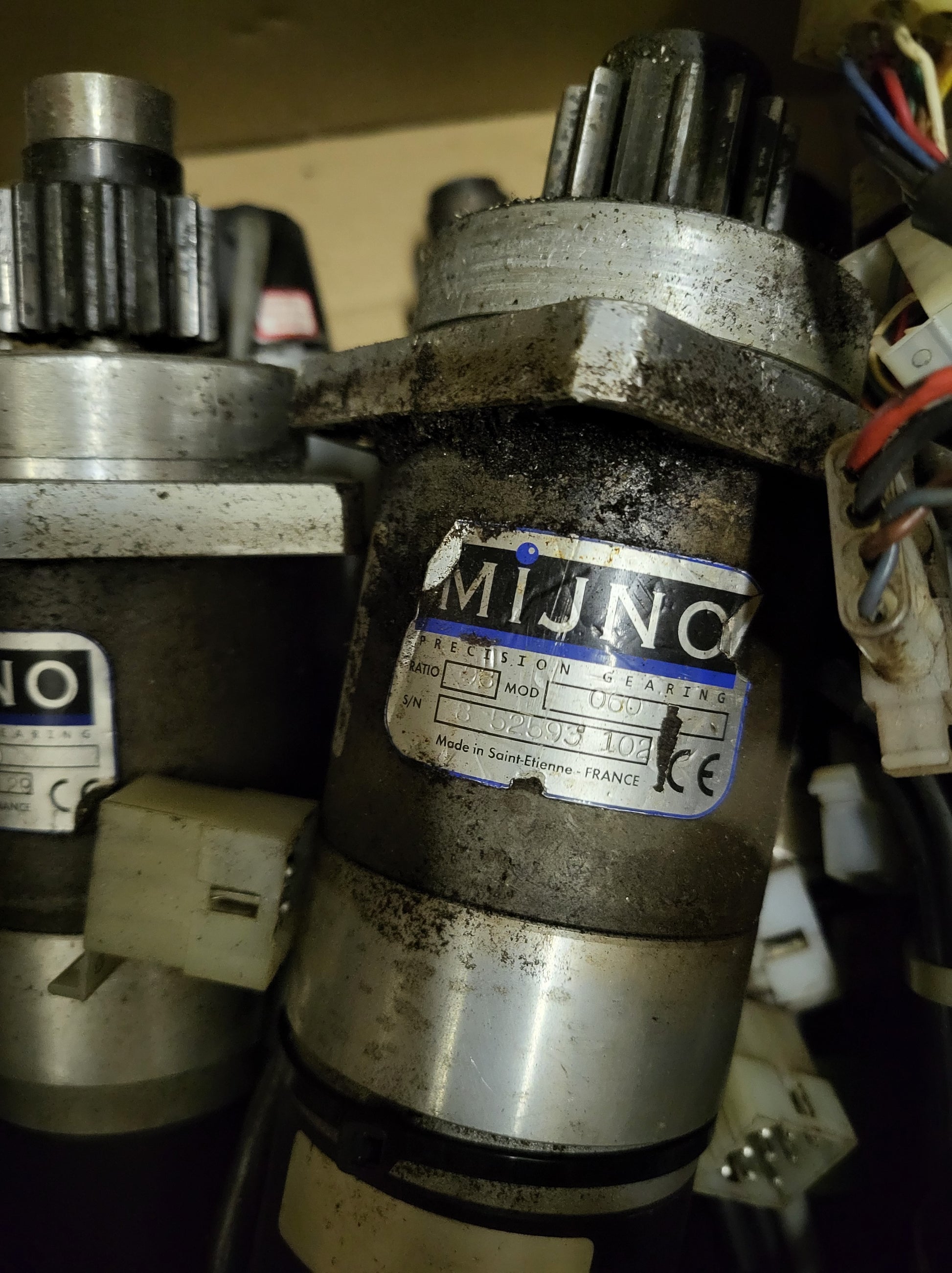

RX120LR1207 Parvex brand, DC servo motor (+ Mijno gear), 0.285Nm
Price, delivery time, condition, warranty, options:
a.) selling price for a used, functional module: 485EUR ( 198,873 HUF) Half-year warranty, delivery time: 1-2 days to Hungary, 1-5 days to Western and Central Europe, UA (4 days), UAE (12 days), USA (16 days).

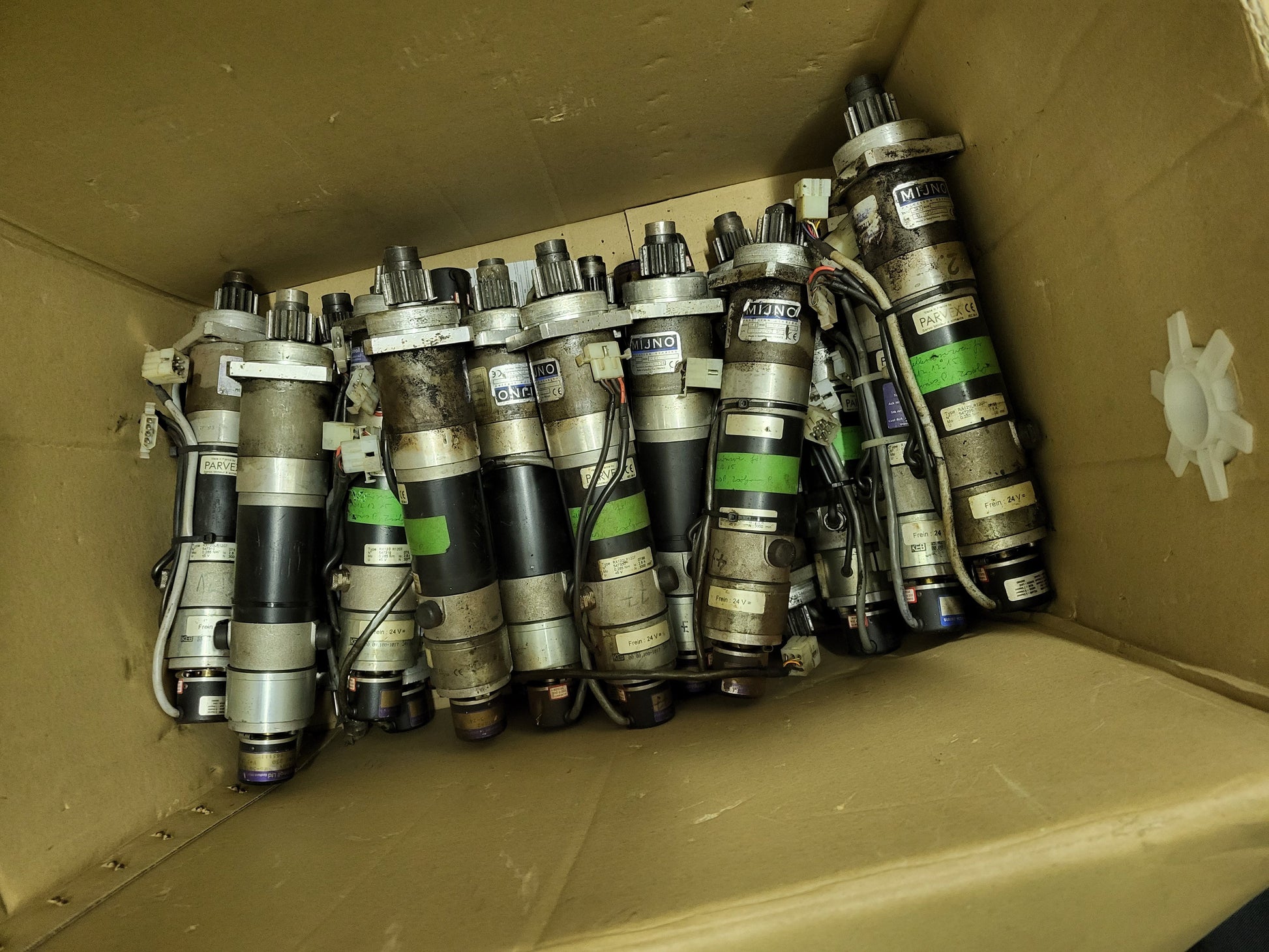

I have many of these engines in my immediate warehouse, and I can support your production for a long time. Even for 5-10 years.
I offer a replacement guarantee and money back guarantee for your purchase.
b.) repair price: EUR (HUF), 1 year warranty.
Standard repair time: 3 weeks delivery time to Hungary, 3 weeks delivery time (to Europe), UA (4 weeks), UAE (4 weeks), USA (5 weeks).
Same for urgent repairs and delivery: 1-1.5 weeks.
Product details:

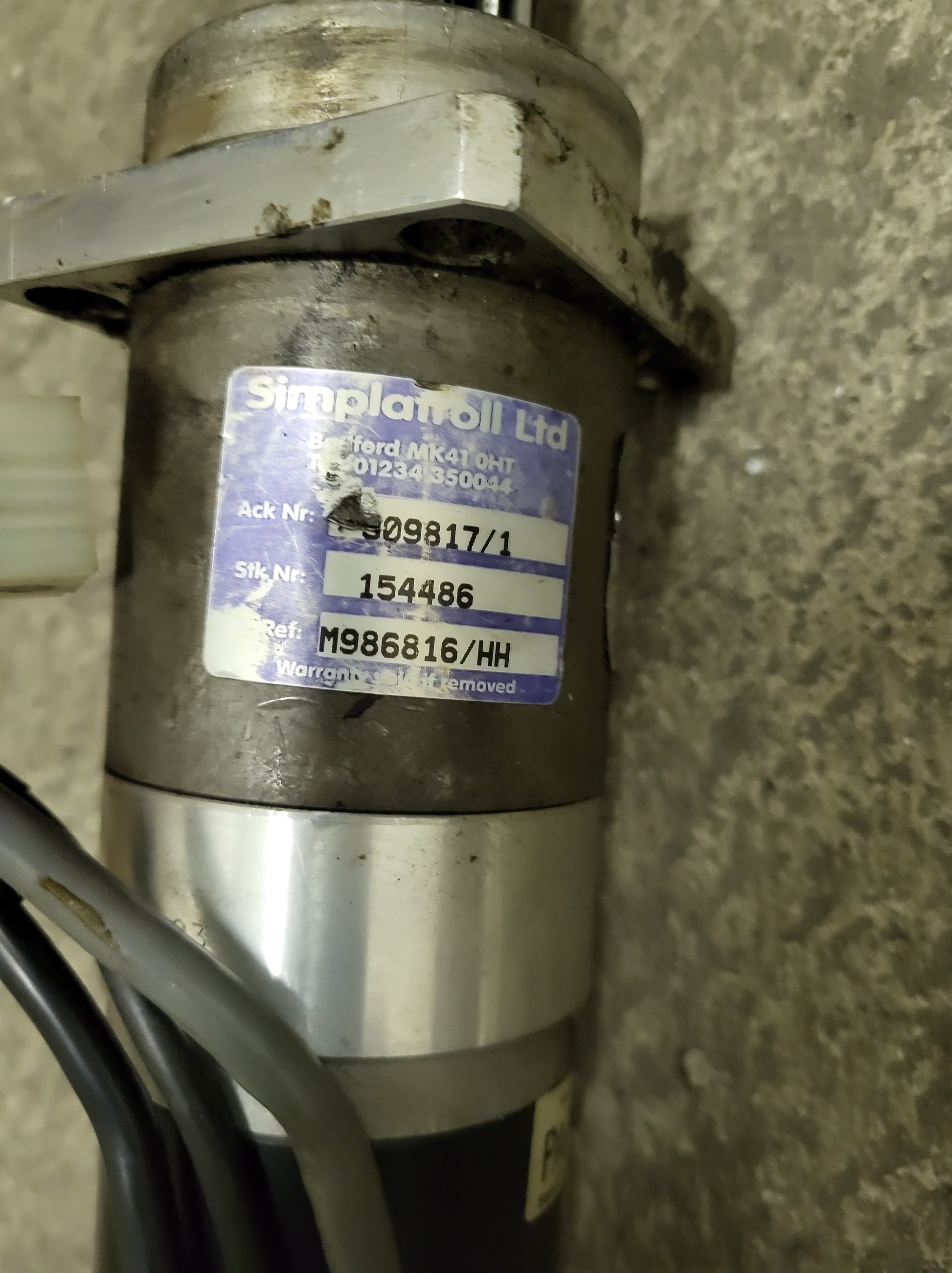

Simplatroll Ltd.
909817/1
154486
M986816/HH

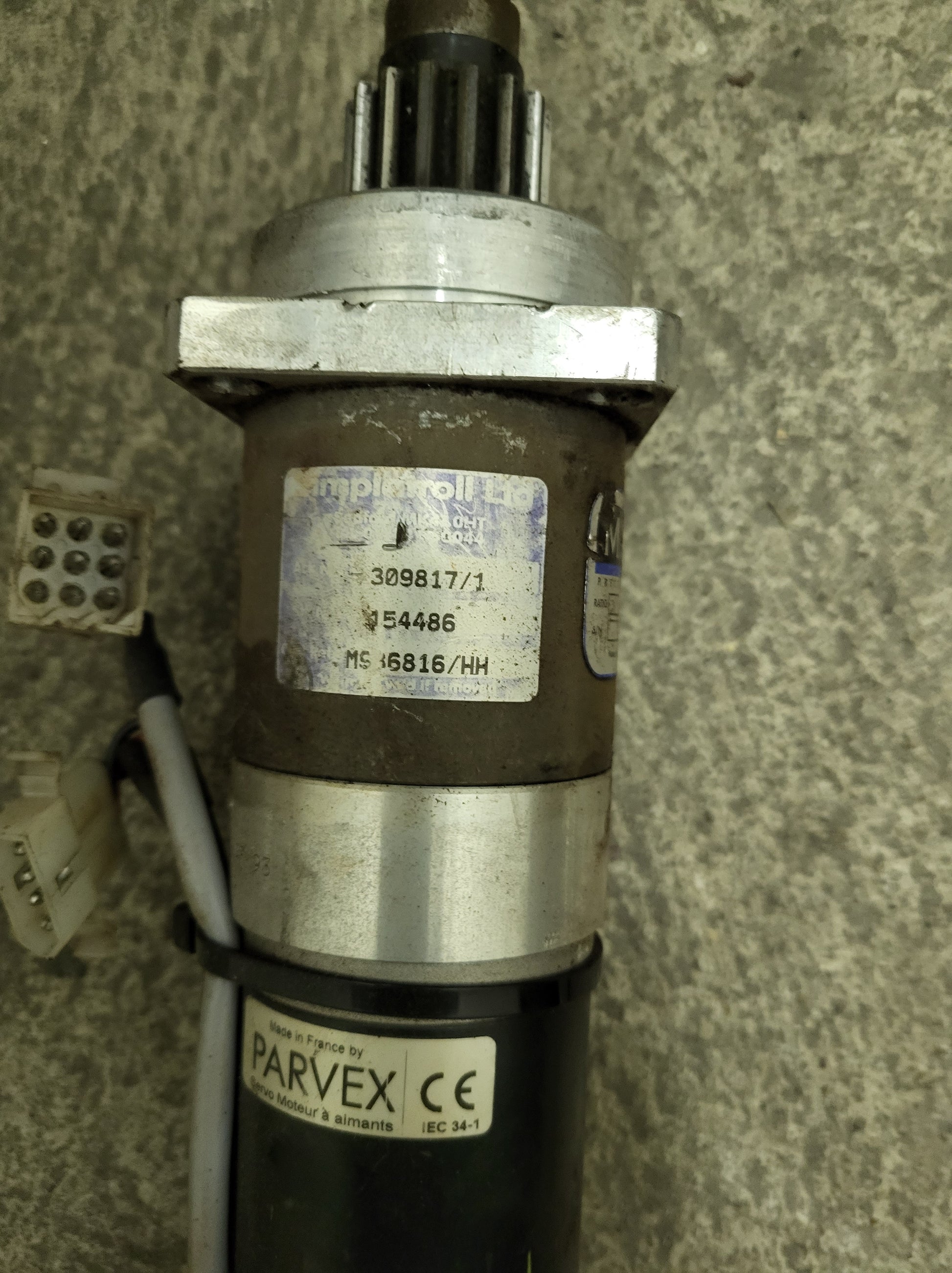

Parvex part number: RX120LR1207

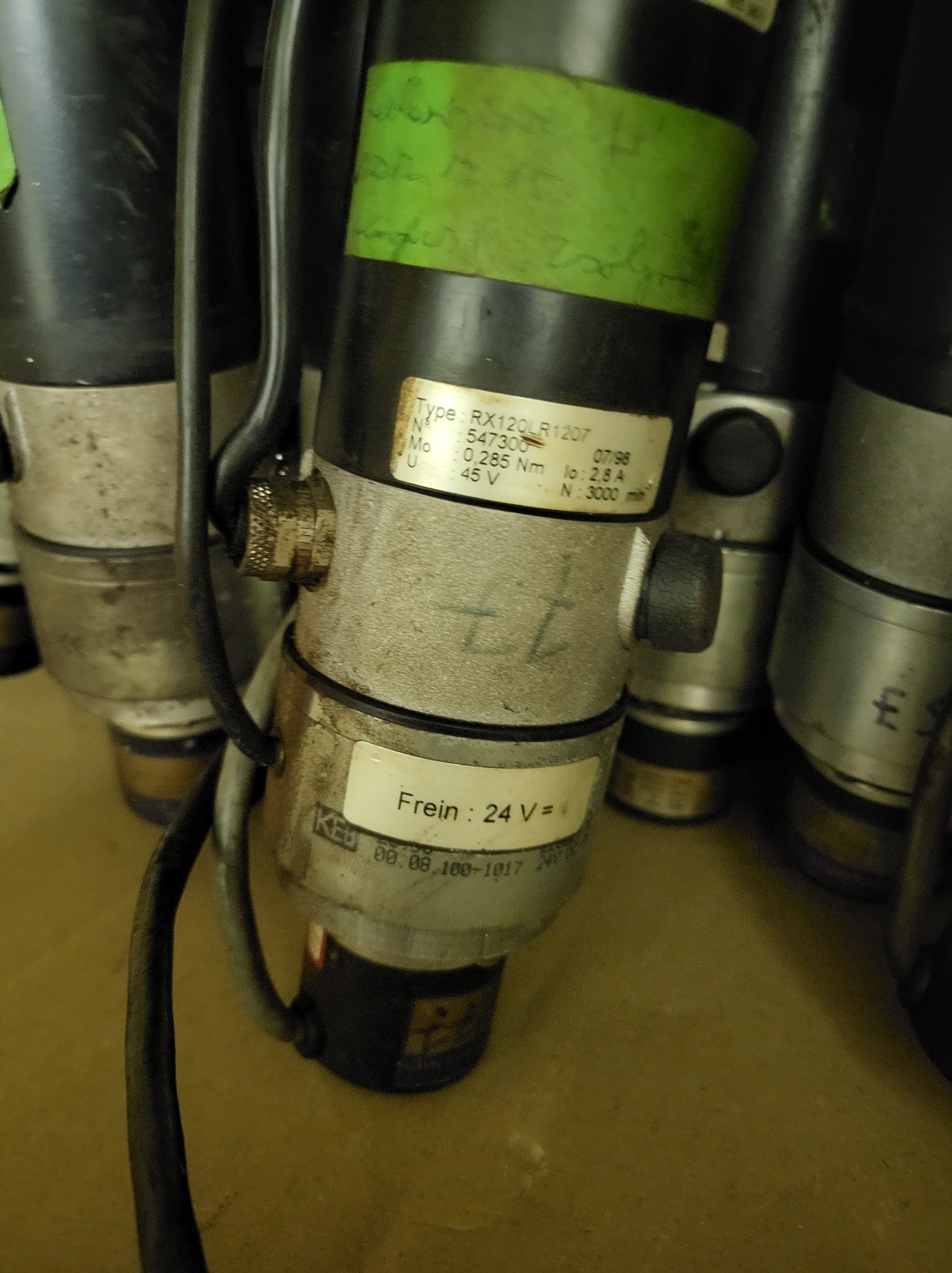

Mo: 0.285Nm Io: 2.8A
U: 45V
If you buy just the Parvex motor, the price will be 485EUR. However, if you also buy the 614016, Atlas drive , the price of the motor and drive together will be 790EUR.
________________________________________________________________________________

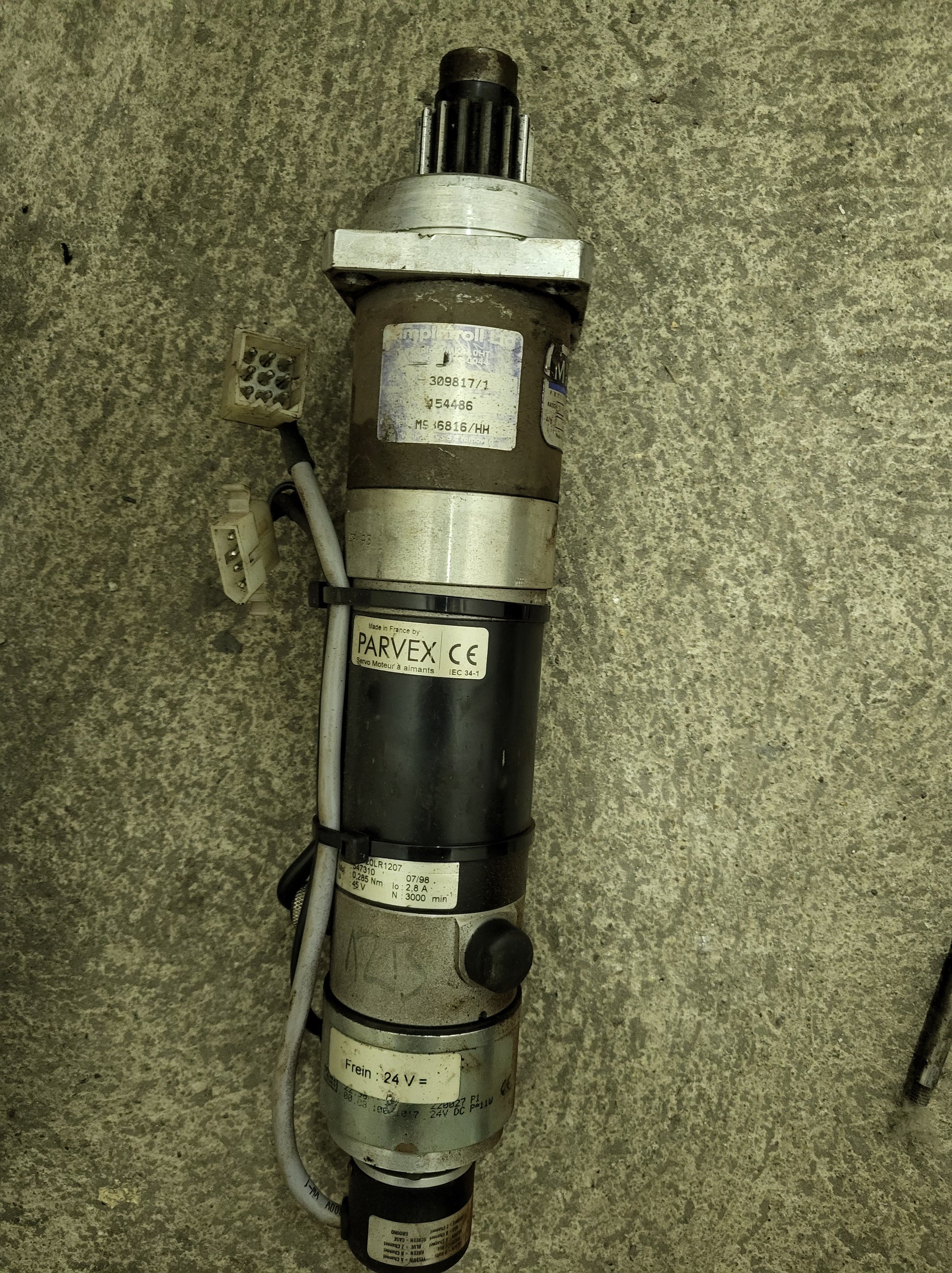

RX120LR1207 DC servo motor with 24VDC, 1Nm holding brake and 1m flying cable.
0.285Nm continuous torque at zero speed at 2.8A, 89W.
3000RPM at 44VDC
58mm diameter (overall) x xxxmm long body excluding crankshaft.
The shaft is 6mm diameter x 20mm long, with a keyway.
Flange mounting with 4 x M4 holes (6mm deep) at 36mm pcd, with 25mm diameter stud.
Weight: 1.25 kg.
The inertia is 0.5kgcm2
Manufactured by Parvex and sold under a number of other names, including nameplates with the following designations: BBC (Brown Boveri Company), ABB, ASEA, GEC Alsthom, CEM, Kollmorgan, Mattke and Alstom.
For size information, see the download below:
RX1-2ba-Drawing-283551E10001 (62 kB)
This information about the Parvex engine comes from this page:
https://inverterdrive.com/group/Servo-Motors-DC/RX120LR1207-Servo-Motor-Parvex-ABB-Alsthom-GEC/
